Painting Plaster Castings

 Today I painted the remaining walls of the roundhouse and thought I'd add a blurb here to share my technique for painting plaster stone wall castings.  Two days ago I started with sealing the unpainted castings with clear Acrylic from a rattle can.  Either flat or satin will work just fine.  I let them dry for two days but overnight would have been good.  For color I'm using Acrylic paint (DecoArt Americana).

In a 4" plastic lid I mix a quarter (25 cents) sized blob of paint with two siphon loads of water (5 ml each).  For sponges I use natural uncut sponges about 3" in diameter.  They should be soaked in water and then rung out until there are no drips.

I start with "Grey Sky".  I dip the sponge in the paint and dab it on a paper towel until I no longer get a solid blotch.  Then I lightly dab the sponge on the surface of the plaster casting, not covering the whole surface, and turning my hand side to side with each dab to prevent repetition.

The next color is "Mississippi Mud" and gets mixed with the same proportions but is mixed in with the previous color.  Apply as above.

Next is "Burnt Umber".  Mix as above, quarter sized blob with two siphons of water.  Use a brush to apply to random stones and then randomly dab on with a sponge as before.  In the picture below, the top row shows the random stones painted with a brush and the bottom row shows the final look after the sponge work.

"Burnt Sienna" is next, mixed the same as above.  This has a reddish look.  Apply this with a small brush, fully loaded so it floods the grout lines when you touch it to them.  It'll get all over everything so neatness doesn't count here.  Do a small area at a time, maybe 1/2 a wall casting.  After painting the grout lines come back with a clean sponge and gently dab the stone surfaces until the grey starts to show through.  Turn the sponge often to keep a clean side in use.  The picture below shows the flooded grout lines on the lower left.

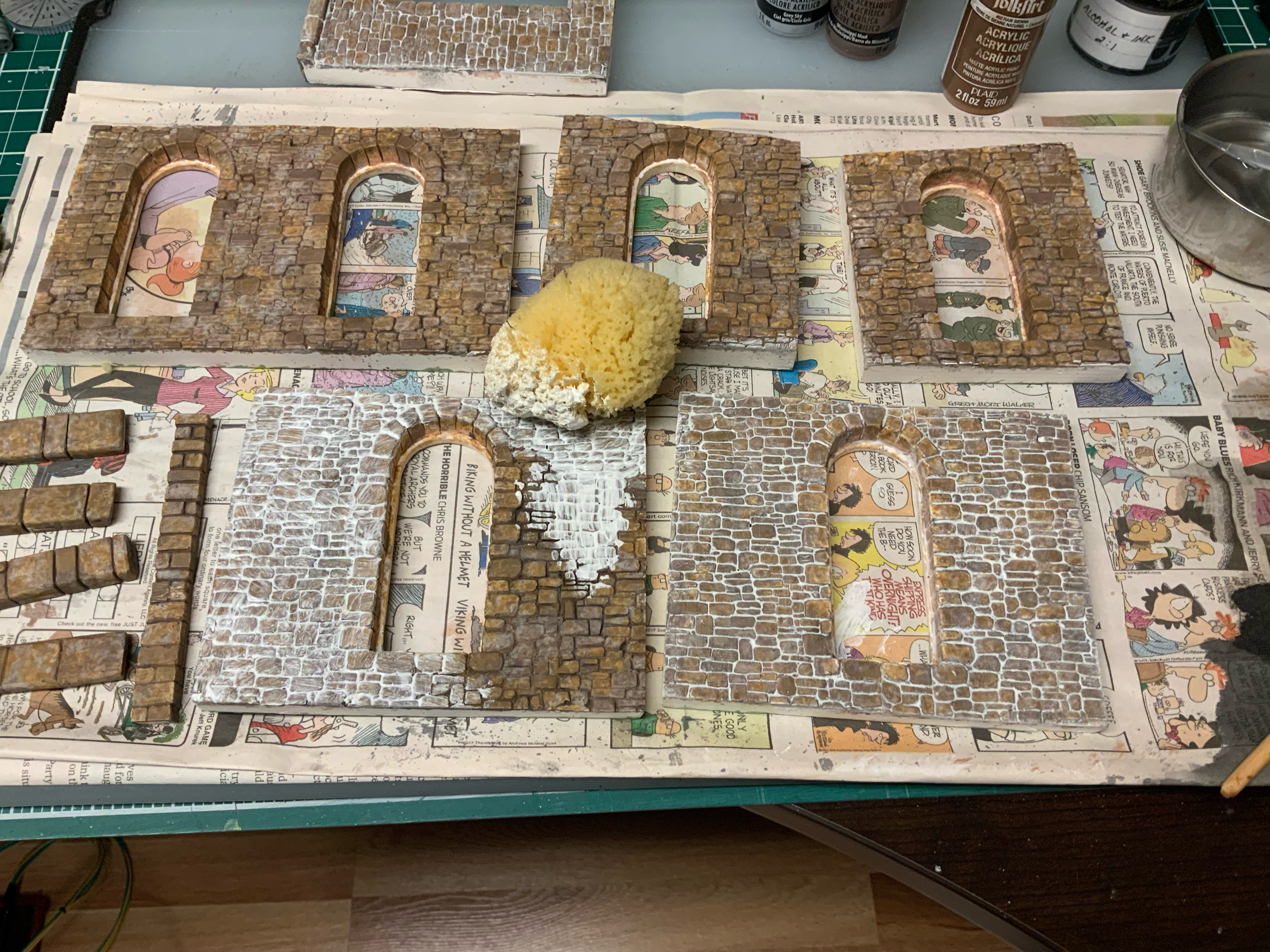

The next picture, below, shows the casting after the "Burnt Sienna" has been dabbed with the sponge.  Now it's starting to look like something.

Now clean out the plastic lid and mix a solo batch of "Raw Sienna" (golden yellow), using one quarter sized blob to two siphons of water.  Dab on gently, sparingly and randomly with a clean sponge, twisting your hand back and forth to prevent patterns.

The final step for painting is to mix India Ink.  Pour out a quarter size puddle and mix in 2 siphons of water in a clean plastic lid.  Rinse and squeeze out two sponges.  One sponge is used to wipe the ink across the surface, working it into the grout lines.  Follow immediately with a clean sponge, dabbing the surface of the stones.  Keep turning the sponge to present a clean face.  Work it gently until the color shows through the ink.  The ink will lighten as it dries and you may want to go back over the casting again to darken it more.

The dark black on some areas of the casting are ink that hasn't dried yet.  I had settled on the is look until I came up with the idea of doing the grout.

This is only the second time I've used painting technique and it's been over two years since the last time.  I wrote everything down knowing I'd be coming back to it later.  My big question was would it match?  That was crucial for me since all the walls go to the same building.

Note: When choosing an India Ink be aware that some are mixed with purple.  I don't know why they would do that but I ruined 500 ties because of it.  Verify that it's a true black ink.  Here's what I use.

I have no idea what the label says but it is certified black India Ink.  From Japan.

The next step is to fill the grout lines.  I use DAP Wallboard Compound (mud) and still had a tub of it from two years ago.  When I opened it up it looked like new.  Good mojo!

Use two freshly rinsed sponges.  One for applying the mud and the second for cleaning the surface a few minutes later.  The sponges should be wet but not sopping wet.  I rinse them and then squeeze once to get rid of most of the water.

To apply the mud I load up one end of the sponge and dab it on the casting, working it into all the cracks and crevices.  I can do an entire casting at a time and then come back with a clean sponge and gently wipe it diagonally across the surface to clean the face of the stones.  Leave the mud in the grout lines.  The point is to not scrub off the paint with the polish-like mud.  I turn the sponge as I go to keep using a clean side.  For the larger castings I might have to rinse out the sponge several times.  After 15 to 30 minutes the wet stones will start to dry and look hazy.  Go back again with a clean sponge and very gently wipe the surface again.  Some of my castings took more than two cleanings.  In the photo below the casting with the sponge is in the process of getting mudded (?).  The casting to the right of it has been cleaned once and is still wet.

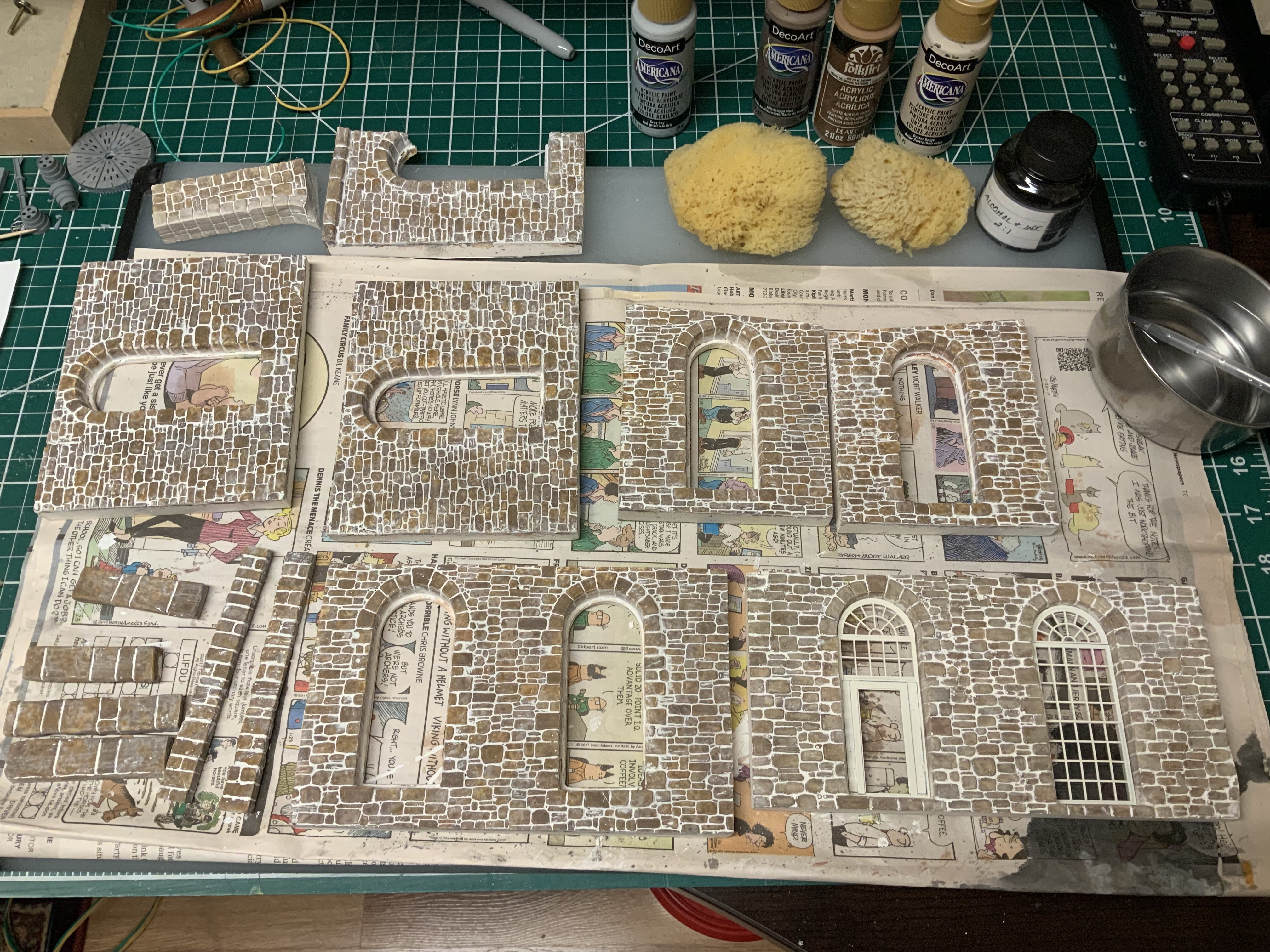

The photo below shows all the castings after several cleanings and having sat drying for about 40 minutes.  The two at the bottom are identical castings having come from the same mold.  The one with the windows set in place was done two years ago  The one on the left will continue to fade a bit more with time as the water continues to dry out from the mud and the paint.  After drying for several hours I was unable to tell them apart.  I think the paint formula works pretty well.

There's still more cleanup to do here.  After drying for 24 hours go back and clean the mud from areas where it has built up too much.  The surface of the stone wall is not flat and some stones are sunk in deeper than others, tending to get covered up with mud.  Use a paint brush with short stiff bristles to scrub off any mud that has dried on the stone.  In the picture above on the bottom left wall casting you can see where mud has built up against the raised stones surrounding the windows.

The process here goes pretty fast.  The mud is pretty forgiving too and you can go back and work it again with a wet sponge or brush after it's dried. You may also see areas during the process or after where the mud has been scrubbed out of the grout lines.  You can go back and redo these areas with fear of ruining your other work.

The filled grout lines look pretty good to my eye.  What I really like is the multi-colored stones.  Those really capture the look of the real thing.  I haven't tried weathering these walls yet and I plan to let them dry for a good long time.  Sometime in the future I may try weathering on a scrap piece and if I find a good technique for that I'll write it up here.


Monday, October 4, 2021

Locomotive Wheel Lathe




My roundhouse has a machine shop attached to one side and I'm slowly populating it with an overhead belt drive system and machinery.  When I built the drop pit for the roundhouse I knew I wanted to have a locomotive driver wheel lathe in the shop to complete the narrative but there aren't any models available on the market.  My Anycubic Photon resin printer is the answer but the lathe design is going to be pretty complex.

I spent several days in TinkerCAD working on the face plates.  The two work stands and the gear and belt drives will take some time too.


Because my layout is On30, 1:48 scale, the drivers on my two larger locomotives, 2-8-0 Consolidations, are only 48" in diameter.  The drawing that I'm working with is of a 66" lathe and that seemed just about right figuring the shop would have felt that would accommodate any new locomotives for quite a while.  So the photo at the top of the page here is pretty much what I'm trying to build.


 The drawing I'm working from is from the East Broad Top RR book about their shops.The only known dimensions I had to work with are the 48" drivers and the 66" face plates so I drew those with the CAD program and worked out everything from there purely by looks.  The first thing I printed out was a face plate, mostly as an experiment, just to see how it came out.  When I stood the 5'10" shop foreman next to it I realized I needed the face plates to be larger for visual impact.  I Googled the Lathe manufacturer and found a book they had printed in 1917 to show their product line.  They had several different sizes of lathes and I chose 88".  As I worked out the design in TinkerCAD and started printing parts I again changed the face plate size and ended up with 82".  That's my final answer.  This was all driven by how it would look overall.  I changed the face plate size but not the dimensions of anything else and it worked out pretty well.



These lathes had several interesting features and I tried to include several of those details.  Instead of using a crane to lift the wheel set onto the lathe centers they built an I beam that fit into slots on the face plates.  A chain with hooks at each end was hung from an eye on the beam.  The hooks were attached to the wheels and the face plates were rotated to lift and center them.  Pretty slick.  They also had a plate on the backside of one of the face plates that had hills and valleys along it's rim.  A small wheel and lever rode along the rim creating a rocking motion as the lathe turned.  The lever was connected to rockers on an overhead shaft which were, in turn, connected to a lever on each work station.  As the lathe turned the rocking motion caused the cutting bit to advance across the surface to be cut.  An automatic feed.  That too was pretty slick.

With the design completed I printed out my parts in groups.  The housings and end frames were printed with the centers and hand wheels but the face plates were printed separately.  The two work stations were printed with their rack plates attached.  Each gear was printed out individually.  About 15 parts altogether.  The picture below shows the work stations as they came out of the printer.  Very little cleanup was necessary once the base and supports were removed.


I used 3 different sizes of brass rod for the various shafts on the lathe and again this was decided strictly by looks.  The gears were printed with the correct size holes for their shaft and the final print was so clean they only needed a slight cleaning out with a drill bit.

Before final assembly I'll complete the painting and most of the weathering.  At this point I've airbrushed everything with a coat of water based Acrylic grey.  Gear teeth will be painted "steel".  Tracks for the workstations will be grimy bronze.  Bolts will be black.  I used a "metal silver" Sharpie for the face plates, hand wheels and levers.  Here's a shot of what I have so far.  The streaks on the face plates will hopefully be hidden by oil stain type weathering.  More to come.


Update 7/28/2022 -
It took me a while to figure out how to add aging to this model.  I had seen the prototype for it at the East Broad Top RR shops in Pennsylvania.  The belt driven lathe was built in the 1880’s and used continuously into the 1950’s.  It then sat unused for 70 years.  The faceplates and exposed metal surfaces have a beautiful patina most likely caused by surface rust and carbonized oil.


My model represents a lathe that’s been in constant use for about 30 or 40 years, in 1927.  I wanted a look somewhere between shiny new and decrepit old.  I added “grimy black” to the gear teeth and bearings to represent grease and smeared some on the floor to represent splatter from the gear teeth.  For the dirt and grime on the floor of the lathe I used black and brown chalk dust mixed with water and applied in puddles, smeared around and left to dry.  I used “metal” magic marker, chrome on the faceplates and a combination of brass and gold on the guides and drive cogs.  To get a patina on the faceplates I used orange, dark red, tan, brown and black chalk dust, each applied with water.  I lightly rubbed the surface with a dry paper towel to blend the colors, added more color where needed and then sealed with satin clear spray paint.









Thursday, August 12, 2021

Rail Trucks


I have two Bachmann On30 Rail Trucks that I got through eBay.  They were advertised as having operational problems but didn't mention them missing windshields and visors.  Fortunately Bachmann still has these available as part of their cab body kit ($20.39) so I ordered two of those.  I also ordered two "Cab and Driver" packages ($11.33) for the snow plow and driver.  I didn't realize at the time that this package also included a windshield and visor so I guess I'll have spare parts for a future project.

My plan for the Rail Trucks is to make the necessary repairs to get them running and then convert them to RF control with battery power and sound.  One truck has broken gears and the other has an electrical short.  On both trucks I'm replacing the gears with NorthWest Short Line (click here) metal gears and replacing all the wiring on both.  For the electronics I'll be using components from Stanton S-cab (click here) and Soundtraxx (click here).

When I first sat down to work on this project I knew right away that I'd need a way to conceal the electronics.  The Rail Trucks come from Bachmann with a short stake bed and a small plastic box in the bed to hide a DCC decoder.  My plans include a 1" speaker, a TSU 2200 decoder bundled with an RF receiver, a battery controller board and two 1000 mAh Ni-Cad batteries.  I needed a bigger box.

I Googled "Galloping Goose" for pictures of the rail trucks that had been used by the Rio Grande Southern (RGS) railroad during the first half of the 20th century.  They had at least one that Bachmann copied for their flat bed rail truck but most of the RGS Geese had long enclosed boxes in place of the open bed and were used for LCL (less-than-carload) freight.  Some of these were later converted for passengers.  I found one Goose model that had a freight box but it was still too long.  I did like the style of it though and used that as an inspiration for my own design.

I sat down at my computer using TinkerCAD to work up what I needed and printed it out on my Anycubic Photon SLA 3D printer.  I've worked with a filament printer for the past two years so I was familiar with the design software but this was my first project on a resin style 3D printer.  With a filament printer this cargo box would have to be done in 5 separate pieces, 4 sides and the top, to improve the details.  I wanted to see what I could get away with on the resin printer so I attempted to print the whole box in one shot.  My first try showed some distortion, warping, in the walls so I flipped it over in TinkerCAD and printed it upside down.  The second try came out great, just as I had planned it.  I went back to TinkerCAD and drew up a "ghost" box using the interior dimensions so I could work out how to arrange the electronics.  I made boxes with exact dimensions of the boards, batteries and speaker and placed them in the "ghost" box.  The picture below is a screenshot from TinkerCAD.  I slid one of the 800 mAh batteries back to show the placement of the other components.


By planning my use of space in the CAD program I realized if I widened the box just a bit it would have room for a pair of 1000 mAh batteries instead of the 800 mAh ones I first planned to use.  This is probably overkill for a rail truck but both sizes of batteries cost the same.  I'll probably be able to run these trucks for a week without a re-charge.  Cool!  Because I had designed the walls of the cargo box extra thick for printing I was able to find the additional interior width without actually making the box any wider on the outside.  In the picture above you can see the speaker and it's baffle box are placed in the forward half of the truck so it'll fire down through holes drilled in the bed.  I placed the BPSv4 near the top because it has two reed switches (on, off) that can be controlled with a magnetic wand.  The decoder / RF receiver has an antenna at one end that should work fine with the plastic cargo box.

While using TinkerCAD I added 0.032" holes for ladders and door handles.  I'm thinking about adding a "roof rack" so I included holes for that too.  Using the CAD program for this works well because you can get perfect alignment whereas drilling them by hand they'd be all over the place.



Using the filament printer I would send my CAD generated designs as .stl files to be processed for printing by Cura, a "slicer" program that I found to be intimidating because of it's 100's of controls.  I found that Cura wouldn't work with my Photon resin printer so I downloaded Chitubox, another slicer program, which I was pleased to find only had 16 controls.  I'm really impressed with the easy and intuitive controls of the resin printer and the prints are finished much quicker than with the filament printer, at least half the time.  Best of all, the quality of the print is light years ahead with smooth surfaces, super detail and very little "post-processing" cleanup such as sanding and filing.  Filament prints required a lot of cleanup.  The downsides to the resin printer are that it requires using gloves when coming in contact with the uncured resin (which is slightly caustic) and parts need to be cleaned with isopropyl alcohol (I use an ultrasonic cleaner) and then cured in direct sunlight or under a UV lamp.  I use paper towels to soak up excess resin right after a print and place the part in the cleaner for 10 minutes.  Once that's done I put the part under a UV lamp in my curing box for 45 minutes.  Under the sun it can take about 2 hours.  I'll usually start printing another part while I'm going through the cleanup/curing process.  This box took 3 hours 48 minutes to print which included 903 layers, each one .050 mm thick.

I'll update here as I make further progress.

8/14/21 - I've been in contact with Neil Stanton about what parts would work best for this application.  The batteries I originally wanted are not available right now.  After discussing it with him I decided the rail truck didn't really need all that battery power so I'm going with a single 800 mAh instead.  Since one of the rail trucks already had a decoder he quoted me a price for just the RF reciever and a BPS with an 800 battery.  Good deal.  Placed my order today.  I'll order the electronics for the other truck when my oil well comes in.






Saturday, July 25, 2020

Building a Test Track




When I set up my modeling shop in it's own room I gained more than real estate.  The shop is 8' down the hall from the train room and I now have some space for serious hobby time.  One of the first things I did was put in a corner desk/work bench and hung some 4' LED dual tube lamps for better lighting.  I decided I needed a test track for checking out new locomotives or ones that had been converted to RF/battery control with sound.  I also needed a programming track.  At first I was just going to have a straight length of track but I figured it'd be a good idea to include curves and turnouts that are the same as what would be used on the main layout.  Somewhere along the line I read about shunting puzzles and decided it would be fun to have a switching game.


My test track now runs on a 9" wide shelf above the workbench.  The "layout" is all one level, completely flat, and I used 1/2" Homasote over 1/2" plywood (same as the main layout) hung on the wall with adjustable shelf brackets.  Since it's in a corner of the room one side is 7' long and incorporates a shunting puzzle called an Inglenook with three sidings and three #5 turnouts.  I ran track from the first and third siding back around the corner which gives me 21" and 18" curves, same as what's used on the main layout.  Down the other wall is a 9" x 7.5' shelf with a close copy of John Allen's Time Saver puzzle.  This incorporates two #5 turnouts and three wye's, also used on the main layout.  On the outside curve of the test track, 21" radius in the corner, I insulated both ends where they meet turnouts and this gives me about 7' of track that can be isolated from everything else for programming.  I can also put power on this section for running locos that haven't been converted to RF/battery control yet.

A real advantage of my test track is that I can develop skills here first before trying something on the main layout.  I'm hand laying all my track and have never done this before so I can work out the bugs in my techniques on the test track.  If I have to tear out something because I did an awful job it won't really hurt anything.  All the track and turnouts used here and on the main layout are hand laid code 70 with wood ties from Mt Albert.  I'm using the test track to develop stain for the ties and a "rusty look" for the rails.  The stain is a mix of India Ink and earth tone colors of Acrylic paint mixed with water.  I soak the ties in the stain for 24 hours and dry them overnight to get a nice weathered grey look.  The ties are all hand sanded beforehand to knock down any sharp edges and give them a worn look.  I tried cutting in grain by dragging an Exacto saw blade across the surface but this is tedious work and in the end wasn't worth the effort.  At least to me.

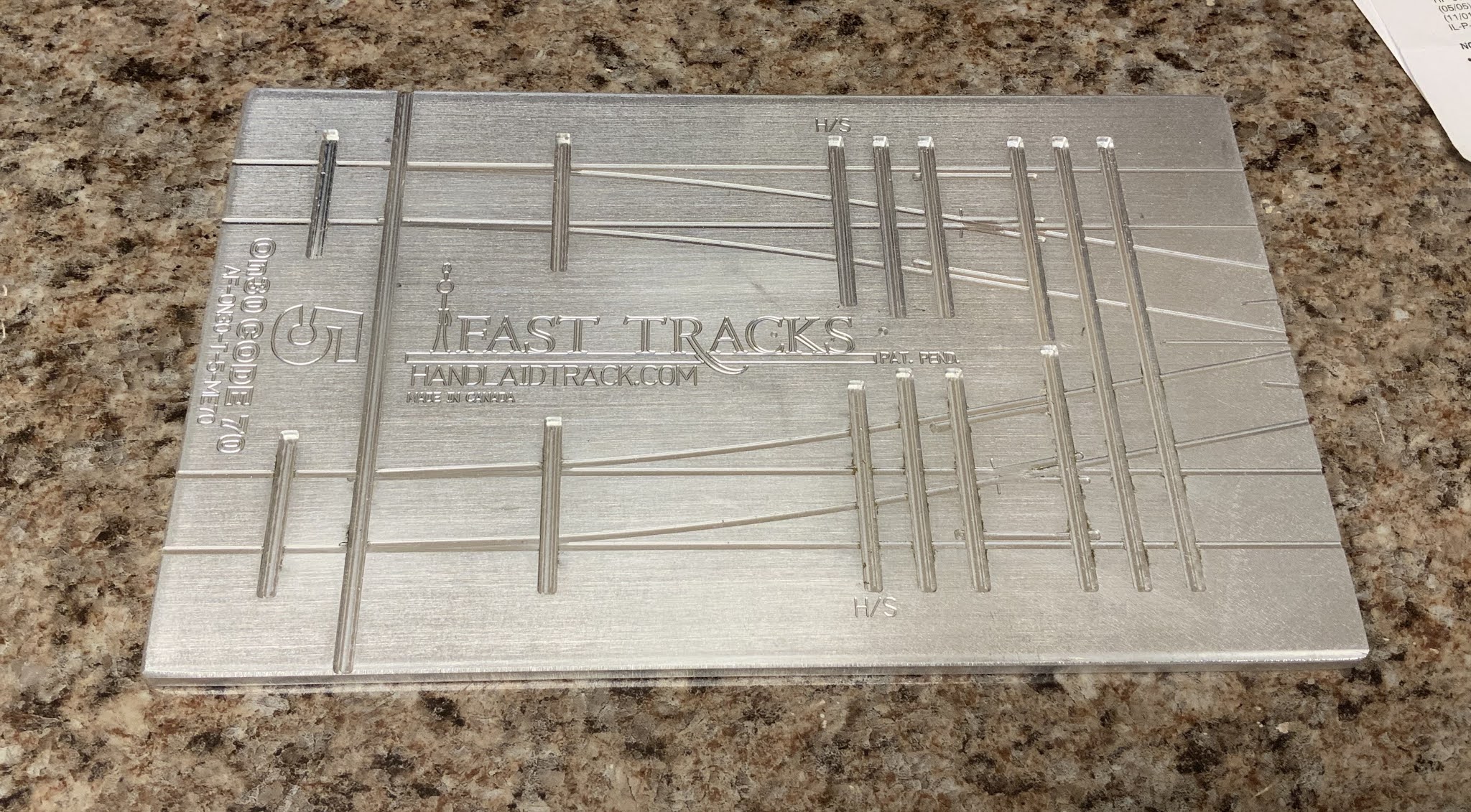

The turnouts are all made using Fast Tracks assembly fixtures which are well worth the expense for this many turnouts.  All my locomotives will be radio controlled with battery power (RFBP) so there won't be any need for power on the track.  Wiring is greatly reduced and turnouts don't require powered switches for polarity changes.  Simple.  All my turnouts will be switched manually using un-powered two position slide switches ($1.50) which give a positive lock in each direction.  The switches (see photo below) are operated using control rods made for RC planes ($9.50/pair, averaging 10 turnouts each) to control wing flaps and landing gear.  The control rods will be operated with cheap wooden drawer pulls ($.95) mounted along the layout facia.  Total cost for each turnout control is less than $4.  I've seen powered switch machines that cost $10, $20 or more and then you have to add in the cost of control buttons, wiring, LEDs, etc.  It can get pretty pricey.


In the picture above you can see the slide switch on the left.  I removed the wire connections to get it to sit flat on the wood block.The switch knob is drilled out for an 0-80 screw and nut that hold the clevis.  Just below the clevis is another hole (0.032") for the piano wire that runs up through the fulcrum to the turnout's throwbar.  The fulcrum is embedded in the plywood behind the wood block.  The red and yellow tubing is the Golden Rod control rod used for controlling flaps and wheels on an RC airplane.  The red sleeve extends halfway into the wood block and is held in place with a #6 screw.The yellow rod is connected to the clevis and the wood knob with 2-56 threaded rod.

As I mentioned before, the un-powered electric switch gives a positive lock at each end of the throw and the turnout is held snugly in position.  Once everything was assembled it took only a minor adjustment of the turnout points to get perfect switching with just a push/pull of the knob.  Cool!


The picture above shows the control knobs in position waiting for the facia panel to be installed.  Should have a pretty clean look when it's all done.  Best of all, this set-up represents simplicity to the max.  The knobs are directly in line with the turnouts so there's no question about what goes where and no diagram is needed.  No power required.  Nuff said there.  Some day I might come back and tie in the ground throws so the flags move when the turnout is thrown.  I started working on it bit it got too complicated and I'm kinda anxious to get some trains running.  Good project for later.  Much later.


Tuesday, July 21, 2020

New Digs for the Shop Part 2

In my previous post I mentioned how poor the lighting in this room was.  I added several strings of LEDs behind the track facia but this didn't really give me what I needed.  For a while I used a stand with five 75w lamps but this created severe shadows and really heated up the room.  I finally bit the bullet and hung two 4' dual tube LED fixtures.  These are similar to fluorescent lights but they'll last almost forever and they run soooooo much cooler than the incandescent lights I had been using.  I went with 3200 K color temperature to give a more natural light.  This is what I'll be using for the layout too.  With the same lighting in both rooms I won't have any surprises when I build and paint a model and then move it into the other room.


Another improvement was the addition of a 3D printing station.  I now have two printers, an Ender3 filament type and a Photon Anycubic resin printer.  The printing station is a roll-around serving cart which gives me storage for tools and supplies.  It has a stainless steel counter top which should hold up to the caustic resin of the Photon printer.  It also has room for a small ultra-sonic cleaner for cleaning the parts made on the Photon.  For curing those parts I built a 12" x 12" x 12" box with an infra-red lamp and a small turntable with a solar panel to give it power when the lamp is on.


This room is only 11' x 12' but it has a walk-in closet.  It's still comfortable but at this point has a lot of tools and supplies in it, most of what I need for my hobby.  I still have a wood shop out in the garage but that's for big stuff and it gets pretty toasty.  I spend most of my time in here now.



Wednesday, May 6, 2020

Building a Diesel Shay Pt 2


In Pt 1 I said something about looking for an HO Bachmann Shay on eBay.  I did look but in the end decided on an On30 Bachmann Shay.  The more I looked at the HO version the more I thought the wheels looked too small.  Nuff said.  I found a really great deal for a dismantled On30 Shay that had metal gears from Northwest Short Line.  It also had bags of spares and a wood cab kit.  Most importantly.....it ran.  As soon as I got it I dismantled the cylinders and boxed in the driveshaft to resemble a transfer case.  It looked pretty good and ran great.  I showed it to some friends and one of them said "cool idea but I really like the look of all that stuff moving around".  Hmm.  He was right.



I was almost ready for paint when I decided to dismantle the whole thing and make it chain drive.  That'll give it some moving parts.  I spent hours on TinkerCAD designing a chain drive.  It got complicated really quickly.  On the On30 Shay the DC motor is mounted vertically with half of it and the gear box hanging below the chassis.  This didn't leave any room for the chain drive so I had to change the motor position.  With the motor laying horizontally I had more room underneath but I lost a lot of room inside the hoods where all the other components go.  I had to completely reorganize everything and this is where a CAD program comes in really handy.  I drew up the chassis with the chain drive hanging underneath and positioned the motor above it.  I made boxes with dimensions matching speakers, the sound board, the RF receiver and the batteries.  I used transparent boxes to show me the internal dimensions of the hoods and cab.  I was able to choose the best speaker based on size and specs.  In fact, in the end I had enough room for two speakers which should give more appropriate sound for the two Caterpillar engines.  I also found batteries that would work better size-wise than my original choice.


So, once again, my project has snowballed.  I think the chain drive will work well and if not I can always go back to the cheesy little transfer case idea.  Learning to use TinkerCAD for finding room for everything was a big deal and if I ever go down this rabbit hole again I'll be sure to use it to help make my choices for components.  As for now I'm  waiting for parts to be delivered.  More later.


Turntable Pt 5 - Arduino Sketch

This is an article I wrote for a book, "Arduino Intermediate Model Railroad Projects" by Paul and David Bradt.  The book is available at Amazon (click here) or from the link on this blogs main page.  The article provides a line-by-line copy of the sketch for operating a turntable using Arduino plus a complete description of how it works with suggestions of changes you could make to personalize it.  In order to copy the sketch you'll have to remove the line numbers before copying over to Arduino.  Hopefully before too long I'll figure out how to include the original file here.

7.3 Turn Table Project
By: Tom Ward




Description:

The Arduino sketch for this turntable project is a perfect example of how anyone can come up with an idea and get the help they need to build the code to make it happen.  This is what is so cool about Arduino.  It's fairly simple to understand and if the developer has trouble with a new concept there are always generous people available on the internet to guide you towards a solution.  The authors and contributors of this book have tried to capture some of the challenges and ways to work around them too.

This project started with a concept and an idea of how the turntable should operate.  The creator had never used any of the components (keypad, display, stepper motor, thumbstick) but realized there had to be a way to get everything working together.  Searching the internet for sketches that used some of the key components found one sketch that used the keypad, LCD display and a stepper motor to operate a miter box for making precision cuts.

There was enough information on this website (https://www.brainy-bits.com) to learn how to program these different components.  There was some difficulty making the change from linear to circular motion for this project.  The Yahoo group called "Arduino for Model Railroad" provided the help needed for that conversion.  The website is:  (https://groups.yahoo.com/neo/groups/Arduini/info).

Two people, Dave Instone and David Harris, were instrumental in making the sketch come together but the whole group chimed in with thoughts and ideas.  The online discussion continued for about two months developing this sketch and it's something that can be used by anyone looking for an easy and complete way to automate their own turntable.  The following paragraphs cover the hardware and then the operation of the sketch.


For more information on this project please visit this website:


https://slimgauge.blogspot.com/p/for-actual-operation-of-turntable-i.html


Materials:

The material needed for this turntable control system is:

Arduino Mega 2560
SparkFun EasyDriver
Nokia 5110 LCD
4x4 matrix keypad
400 step NEMA 17 stepper motor
"thumbstick" style joystick
IR Break Beam detector
2 switches
Some LEDs.

The developer may be able to use an Arduino Uno but there are a large number of connections for this sketch.

Other components could be changed out but would require modifying the sketch.

A 200 step stepper motor can be substituted but the sketch would need to be modified and, more importantly, the operation wouldn't be as silky smooth.

Total cost of this control system, including the stepper motor, came to about $85.

Power Requirements:

The Mega and the EasyDriver both run on 5VDC and the stepper motor runs on 12VDC through the EasyDriver.  The Mega provides power for the Keypad and the LCD display.  "Wall-wart" style power supplies rated at 5VDC/1 amp and 12VDC/3 amp were used for this porject.  There are quite a few connections to make but most of them are straightforward and all of them are listed in the beginning of the sketch (lines 9 - 37).  "Comments" included in the sketch should provide enough information for most applications.

Challenges:

There are a couple of important things to note about the SparkFun EasyDriver.  First, it can be programmed to run in different step modes, including full step, 1/2 step, 1/4 step and 1/8 step.  This means that every full step gets broken down into multiple steps for smoother operation.  In this project 1/8 step mode is used in the sketch but there are instances when that changes.  Another benefit of using the EasyDriver is that it uses "AccelStepper" which is a software library for stepper motors.  More on that later.

The 4x4 matrix keypad connections (lines 61 - 69) were a big challenge but understanding the pin out arrangement makes it easier to decipher.  Making the physical connections and watching the LCD display made it easier too.  The keypad has eight pins; four columns across the bottom and four rows down the side.  Each button is assigned a column and row by its location on the keypad.  Not all the keypads are pinned out the same because of differences in the way the traces are run on the board.  Making a drawing of the keypad and the ribbon cable connector and then drawing lines to each column and row helps to understand how the pins are numbered and connected.  The developer found out that it was just the opposite of what he thought it should be .  The pin numbering was upside down and backwards and he corrected the problem by changing the connections at the Mega while watching the display.  Some really inexpensive ($1.50) keypads have a removable paper covering which when removed allows the actual traces to be seen.

The Nokia LCD display is interesting.  It was originally used in an older style cell phone.  The display is 84 x 48 which gives enough room to show multiple lines of information.  There is a lot of information about these on the internet. This site proved to be the most useful:  (https://www.youtube.com/watch?v=FqJYb7wYAi8).

The "Brainy Bits" website (https://www.brainy-bits.com) is full of useful information with excellent explanations for the parts used in this controller.  If a different display is used then a unique one can be designed by using Photoshop and then transfer it to an app called "LCD Assistant" that will do all the work to convert the image to the new LCD display.  On this project things were kept simple and an existing display was modified and is shown in the code in lines 348 - 366.

Calculations:

1)  The stepper motor uses 400 steps to make a full rotation.  It has a 20 tooth M2 pulley mounted to the motor shaft.  This is for a metric belt that has one tooth every 2mm.  The belt connects to a 60 tooth M2 pulley mounted on the turntable shaft.  This provides a gear reduction of 3:1.  One full turn of the turntable requires 1200 steps.  In 1/8 step mode it requires 9600 steps.  This gives very smooth operation.

2)  Knowing that there are 1200 full steps in one rotation, the distance between each step can be calculated which helps when setting up the tracks around the turntable pit.  The developer’s turntable pit is 14.5" in diameter.  Multiply that times pi (3.14) to get the circumference, 45.53".  Now divide that by 1200 to get 0.038" and this is the distance between each full step at the wall of the pit. Then calculate the minimum distance between tracks and how many full steps are needed to go from one track to the next.  This is very important data to know.  The developer’s layout is in On30 scale so he needed a minimum of 1.1" between track centers to clear the ends of the ties.  This allowed for up to 41 tracks around the pit although he only needed 16 tracks for his layout.

Operation:

When power is first applied to the turntable controls, the sketch is initiated and the stepper begins homing CCW in full step mode.  An Infra-Red Beam Break detector was installed under the turntable platform.  As the turntable bridge rotates it also rotates a small metal flag attached to the shaft beneath the layout.  When the flag interrupts the IR beam it sends a signal to the Mega board which stops the stepper, sets that point as zero and turns on an LED to show it's been set.  Everything the stepper does from that point on is referenced to that location.  In this example there are 16 tracks around the turntable pit and each track is a certain number of steps from the zero point.  They're listed in full steps in the program and that's how the stepper knows where to find a specific track.  The operator can punch in a "2" on the keypad, hit the # key to enter it and the bridge/stepper knows to turn 90 steps to get to that track.  If the operator enters 15 it'll go 975 steps.  That's full steps though.  The program knows that after the zero point is established it needs to multiply everything by 8 so that 975 steps now becomes 7800.  That's how it operates so smoothly.  The EasyDriver also uses code that automatically starts and ends every motion by slowly ramping up speed at the beginning and then ramping down to a stop.  This creates a very realistic motion for the bridge whether it's based on an "Armstrong" (manual) or motor driven turntable.

Prototype turntables were used to position locomotives, to turn them so they'd be headed in the right direction for whatever job they had next.  Sometimes an engine would come onto the turntable so it could be swung around 180 degrees and head right back out.  To simulate this the operator enters the track number on the keypad and then enters "A" and the program knows to add 600 full steps or 4800 1/8 steps to the track value.  If an engine comes onto the turntable bridge at track #15 the operator enters 15A on the keypad and the engine will be turned 180 degrees.  It can then go back out track #15 headed in the opposite direction.

One key lesson learned is that it’s important to know one end of the bridge from the other.  Prototype motorized bridges might have an operators shack at one end.  The armstrong bridge has a wooden pushbar at each end and the developer painted the tip of one of these white for easy identification.  A cool provision in the program is for automatically deciding which direction to turn. If the engine enters the bridge at track #2 and it is desired to exit at track #15 the program automatically decides if it should turn CW or CCW for the shortest distance to get there.  If it has to turn CCW past the Zero location it will keep track in negative steps of how far past it went.

The LCD screen is set up to display current track #, next track # and it also displays "mvng" (moving) when the bridge is in motion.  There is also a part of the program set up for an emergency stop which would be initiated by hitting a switch on the control panel.  There's an LED for display of the emergency stop condition.

By entering "C" on the keypad it enters thumbstick mode.  The display changes to give a constant step readout and depending on how far the thumbstick is pushed the speed will ramp up through four different speeds.  Operation is in full step mode.  The developer set it up this way because the thumbstick would only be used to help add a new track location. Step the bridge to where the new track is located and the display will give the full step number needed to be added to the program.  This thumbstick may not be used often but it is available if needed. Enter "D" to return to normal sketch operation.

In the sketch the operator can enter the location of the tracks by modifying the full step numbers in the "long steps[NUMTRACKS] =" command on line 86.  Note that they start with 0 so there are 16 locations for this example, 0 - 15.  This can be changed on line 85 by modifying the number of tracks needed.  Other easy changes are speed and acceleration of the stepper motor on lines 125 and 126 as well as several other areas of the sketch.  Adjust the backlight brightness of the LCD on line 95.

This sketch is fairly complex with over 500 lines of code but it is "commented" throughout and fairly easy to understand.  It's laid out in "void" control sections.  Void Loop accesses these when needed to perform different functions:

"void start TT" (lines 270 - 286) is all about moving the turntable and updating the display.

"void setMicrosteps" (lines 291 - 343) is for selecting step mode and calculating position.

"void drawnokiascreen" (lines 348 - 366) is for updating the display.  The second one, "void drawnokiascreen2" is for the display while in "thumbstick" mode.

"void Joystick" (lines 428 - 507) is the control of the thumbstick.  Changes here are for sensitivity of the speed control in the "switch" function by adjusting the length of the "case" numbers.  The full range is 0 to 512 and it is currently set up for four speeds.  This section of the sketch was eliminated for the printed version of this book.  The full sketch can be downloaded here ().

There is a section (lines 392 - 425) titled "shortest path".  This is the code that decides what direction to drive the bridge to get to it's next location in the shortest number of steps.

"char checkKB()" (lines 218 - 266) assigns the keys for the keypad.  Note that the "*" (star) key is used to erase an entry, basically a backspace key.  The "#" (pound) key is the enter button.  The "A" key is used to enter a 180 degree bridge turn.  The "B" key is not currently programmed.  The "C" key selects "thumbstick" mode and the "D" key is used to return from "thumbstick" mode to  normal operation.

"void setup" (lines 92 - 165) is used to initialize the LCD screen, assign pins on the Mega and set the speed and acceleration of the stepper motor.  This is where the bridge is initially run to set the Zero point.

Below is an incomplete listing of the turntable sketch:

1       // Model railroad turntable indexing control
2       // Created by Dave Instone and Tom Ward

4        #include <AccelStepper.h>     // AccelStepper Library
5        #include <Keypad.h>           // Keypad Library

6        #include "U8glib.h"           // U8glib for Nokia LCD
7        #include <Wire.h>

9       //===============Pin Asignments===================
10     #define StepperEnable 2       // Arduino pin 2 to EasyDriver Enable
11     #define home_switch 9         // Arduino pin 9 to Home Switch (IR Beam Break)
12     #define EmergStop 10          // Arduino pin 10 to Emergency stop switch
13     #define  EmergStop_led  12    // When lit indicates Emergency Stop activated, program stopped
14
15     //================EasyDriver Pins=================
16     #define sleep_pin 39          // Arduino pin 39 to EasyDriver Sleep pin
17     #define MS1 41                // Arduino pin 41 to EasyDriver MS1
18     #define MS2 43                // Arduino pin 43 to EasyDriver MS2
19     #define step_pin A0           // Arduino pin A0 to EasyDriver Steps pin
20     #define dir_pin A1            // Arduino pin A1 to EasyDriver Direction pin
21
22     //==================Joystick======================
23     #define Joy_switch 45         // Pin 45 connected to joystick switch - not used
24     #define x_pin A2              // Arduino pin A2 to joystick x axis pin
25     #define manual_mode_led 45    // When lit indicates thumb stick control
26
27     #define home_led 8            // When lit indicates stepper is home
28
29     //==================Nokia Pins====================
30     #define backlight_pin 11
31     #define UG_CLK  3
32     #define UG_DIN  4
33     #define UG_CE  6
34     #define UG_DC 5
35     #define UG_RST 7
36
37     // Note: Keypad pins assigned in keypad init.
38
39     //===============Keypad Variables=================
40     int enteredTrack = 0;         // used for track entry
41     int targetTrack;              // goal of a move
42     bool reversed = false;        // selects end of TT to align with exit
43
44     //=================Display Strings================
45     String sCurrentPosition;
46     String sTargetTrack;
47     String sEnteredTrack;
48     String sStepCount;
49
50     //==========Miscellaneous Variables===============
51     int microStepsPerFullStep;
52     byte enable = LOW;            // the stepper is enabled when StepperEnable is low or 0
53     long initial_homing;          // Used to Home Stepper at startup
54     int step_speed = 30;          // Speed of Stepper motor (higher = slower) in JS mode
55
56     //=================Constants=====================
57     const long basicStepsPerRev = 1200;   // set by the mechanics of the TT drive
58
59     //===========Library Initialisations=============
60     //===Keypad===
61     const byte ROWS = 4;                   // Four Rows
62     const byte COLS = 4;                   // Four Columns
63     byte rowPins[ROWS] = {22, 24, 26, 28}; // Arduino pins connected to the row pins of the keypad
64     byte colPins[COLS] = {31, 33, 35, 37}; // Arduino pins connected to the column pins of the keypad
65     char keys[ROWS][COLS] = {
66       {'1', '2', '3', 'A'},
67       {'4', '5', '6', 'B'},
68       {'7', '8', '9', 'C'},
69       {'*', '0', '#', 'D'}
70     };
71     Keypad keypad = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS );  // Keypad Library definition
72
73   //===U8glib Setup for Nokia LCD===
74     U8GLIB_PCD8544 u8g(UG_CLK,UG_DIN,UG_CE,UG_DC,UG_RST);
75     // CLK=3, DIN=4, CE=6, DC=5, RST=7
76
77     //===AccelStepper Setup===
78     AccelStepper stepper(1, step_pin, dir_pin);   // 1  selects Easy Driver interface
79
80     //===Stepper Step Settings for Each Exit===
81     /*
82     0 is furthest CCW exit and is always 0, for 1, 2, 3, etc substitute the actual
83     //  number of full steps to that exit from the furthest CCW exit
84     */
85     #define NUMTRACKS 16
86     long steps[NUMTRACKS] = {0, 60, 90, 120, 180, 240, 270, 300, 330, 375, 405, 435, 465, 600, 765, 975};
87     // For info only: 1/8 = {0, 480, 720, 960, 1440, 1920, 2160, 2400, 2640, 3000, 3240, 3440, 3720, 4800, 6120, 7800}
88
89
90     //=======================================================
91
92     void setup(void) {
93
94     // Light up the LCD backlight LEDS
95     analogWrite(backlight_pin, 255);  // Set the Backlight intensity (0=Bright, 255=Dim)
96
97     // Draw initialise variables for Nokia LCD and draw initial screen
98      sCurrentPosition = "";
99      sStepCount = "";
100    sTargetTrack = "";
101    sEnteredTrack = "";
102   drawnokiascreen1();  // Display update for Keypad mode
103   drawnokiascreen2();  // Display update for Joystick mode
104
105   // Set pin directions
106   pinMode(StepperEnable, OUTPUT);
107   pinMode(MS1, OUTPUT);
108   pinMode(MS2, OUTPUT);
109   pinMode(home_switch, INPUT_PULLUP);
110   pinMode(x_pin, INPUT_PULLUP);
111   pinMode(dir_pin, OUTPUT);
112   pinMode(step_pin, OUTPUT);
113   pinMode(home_led, OUTPUT);
114   pinMode(EmergStop, INPUT_PULLUP);
115   pinMode(sleep_pin, OUTPUT);
116   pinMode(EmergStop_led, OUTPUT);
117   pinMode(manual_mode_led, OUTPUT);
118   pinMode(Joy_switch, INPUT_PULLUP);
119
120   // Start Homing procedure of Stepper Motor at startup
121   delay(5);                           // Wait for EasyDriver wake up
122   digitalWrite(sleep_pin, HIGH);
123
124   // AccelStepper speed and acceleration setup for homing
125   stepper.setMaxSpeed(25);            // Not too fast or you will have missed steps
126   stepper.setAcceleration(10);        // Too fast here can also cause missed steps
127   // Set EasyDriver MS1 & 2 for homing and preset microstepsperfullstep
128   microStepsPerFullStep = 1; // need to initialise with 1 so that setMicrosteps() is OK
129   setMicrosteps(1);                    // Set MS1 & 2 for full steps, only for homing
130   initial_homing = -1;
131  digitalWrite(StepperEnable, enable); //enable stepper drive outputs
132    while (digitalRead(home_switch)) {  // Make the Stepper move CCW until the switch is activated
133    stepper.moveTo(initial_homing);   // Set the position to move to
134    initial_homing--;                 // Decrease by 1 for next move if needed
135   stepper.run();                    // Start moving the stepper
136    delay(5);
137  }
138
139   initial_homing = 1;
140
141   while (!digitalRead(home_switch)) { // Make the Stepper move CW until the switch is deactivated
142    stepper.moveTo(initial_homing);
143    stepper.run();
144   initial_homing++;
145   delay(5);
146   }
147  // Zero AccelStepper
148  stepper.setCurrentPosition(steps[0]);
149
150  digitalWrite(home_led, HIGH);            //Turn on the LED
151  targetTrack = 0;
152  enteredTrack = 0;
153  sCurrentPosition = sTargetTrack;         // Change to string for display
154  sStepCount = String(stepper.currentPosition());
155  sEnteredTrack = "";
156  drawnokiascreen1();                      // Update display
157
158  digitalWrite(sleep_pin, HIGH);
159
160  // Set operational speeds and microsteps
161  setMicrosteps(8);                        // Set 1/8 steps
162  stepper.setMaxSpeed(100.0);              // Set Max Speed of Stepper (Faster for regular movements)
163  stepper.setAcceleration(25.0);           // Set Acceleration of Stepper
164
165  }
166
167  //====================================================
168
169  void loop() {
170    long newStepCount;
171    static long lastStepCount = 0;
172    static boolean once = false;
173    static bool estop = false;
174   // The above only get executed once however many times the loop runs
175
176  if (checkKB() == '#') {
177    digitalWrite(StepperEnable, enable);
178    startTT();
179    once = true;                                    // Update the screen only once at end of movement
180    estop = false;                                  // Reset estop flag
181  }
182  if (stepper.distanceToGo() != 0) {                // The motor still needs to run
183   stepper.run();                                  // Not at exit yet
184    newStepCount = stepper.currentPosition();
185    if (newStepCount!=lastStepCount){               // Only print if it's changed
186      lastStepCount = newStepCount;
187      if (newStepCount % 48 == 0){                  // Only every 48 steps, more often interferes with operation
188      sStepCount = String(newStepCount);
189      lastStepCount = newStepCount;
190      drawnokiascreen1();                           // Update display
191      }
192    }
193    // Check for emergency stop pressed
194    if ( !digitalRead(EmergStop) && !estop ) {
195
196    // Now tell software to stop motor, but only once so set estop flag
197      stepper.stop();                               // Tell software to stop motor
198      estop = true;
199      digitalWrite(EmergStop_led, HIGH);            // Turn on emergency stop LED
200    }
201  }
202  if (stepper.distanceToGo() == 0) {                // The motor is stopped but has it just stopped?
203    if (once) {                                     // Just stopped so update the display and reset reversed once and estop
204      sCurrentPosition = sTargetTrack;              // Change to string for display
205      sStepCount = String(stepper.currentPosition()); // Adds steps to display at end of move
206      sEnteredTrack = "";
207      drawnokiascreen1();                           // Update display
208      reversed = false;                             // Reset reversed etc
209      once = false;
210      estop = false;
211     }
212   }
213
214 }
215
216  //====================================================
217
218 char checkKB() {
219  char keypressed;
220  keypressed = keypad.getKey();
221  switch (keypressed) {
222    case NO_KEY :
223      break;                                   // Nothing to do
224    case '#':                                  // Start TT moving
225      return keypressed;
226      break;
227    case 'A' :
228      reversed = !reversed;
229      sTargetTrack = String(enteredTrack);     // Change to string for display
230      if ( reversed ) {
231        sTargetTrack = String(-enteredTrack);  // Indicate reversed for display
232      }
233      sEnteredTrack = sTargetTrack;
234      drawnokiascreen1();                      // Update display
235      break;
236    case '*' :
237      enteredTrack = 0;
238      sEnteredTrack = "";
239      drawnokiascreen1();                      // Update display
240      break;
241    case '0' ... '9' :
242      enteredTrack = (enteredTrack * 10) + (keypressed - '0');
243      // Converts keypressed to integer and builds multidigit number
244      if (enteredTrack > NUMTRACKS) {
245        enteredTrack = NUMTRACKS;             // Not past the last track
246      }
247      sTargetTrack = String(enteredTrack);
248      if ( reversed )
249        sTargetTrack = String(-targetTrack);  // Indicate reversed
250      sEnteredTrack = sTargetTrack;
251      drawnokiascreen1();                      // Update display
252      break;
253    case 'B':
254      // Do code here but better to return 'B';
255      // And call a function or call the function here
256      break;
257    case 'C':
258      JoyStick(1);
259      break;
260    case 'D':
261      //
262      break;
263
264   }                                           // End of switch
265   return ' ';
266  }
267
268  //====================================================
269
270  void startTT() {
271
272  stepper.moveTo(calcSteps(enteredTrack, basicStepsPerRev , microStepsPerFullStep, reversed));
273                                            // Go to new position
274
275  sCurrentPosition = String("mvng");      // Indicate a move is in progress
276
277  targetTrack = enteredTrack;             // Remember targetTrack
278  sTargetTrack = String(targetTrack);     // Change to string for display
279  if ( reversed ) {
280    sTargetTrack = String(-targetTrack);  // Indicate reversed for display
281  }
282  enteredTrack = 0;                       // Prepare for next track input
283  sStepCount = String(stepper.currentPosition());
284  sEnteredTrack = sTargetTrack;
285  drawnokiascreen1();                     // Update display
286 }
287
288
289  //====================================================
290
291 void setMicrosteps(int stepsPer) {
292  /*
293     Configure MS1 & 2 of easydriver and also set
294     value of microStepsPerFullStep to the corresponding value
295     and update Accelstepper current position in terms of
296     new step setting.
297     When reducing number of micro steps rounding errors can
298     cause step alignment errors.
299     If decreasing microsteps check if
300     stepper.currentPosition() MOD current microsteps is zero
301     If not move the stepper in steps until it is
302  */
303  switch (stepsPer) {
304    case 1 :
305      digitalWrite(MS1, 0);   // (1) Full Step
306      digitalWrite(MS2, 0);
307      break;
308    case 2:
309      digitalWrite(MS1, 1);   // (2) Half Step
310      digitalWrite(MS2, 0);
311      break;
312    case 4 :
313      digitalWrite(MS1, 0);   // (4) Quarter Step
314      digitalWrite(MS2, 1);
315      break;
316    case 8:
317      digitalWrite(MS1, 1);   // (8) Eighth Step
318      digitalWrite(MS2, 1);
319      break;
320    default:                  // Default is 8 microsteps
321      digitalWrite(MS1, 1);
322      digitalWrite(MS2, 1);
323      stepsPer = 8;
324  }
325    if (stepsPer == microStepsPerFullStep) {
326      microStepsPerFullStep = stepsPer;
327      return;
328    } // Handles initial setup the very first time called
329
330  // Check for non MOD = 0 current position
331  int oddsteps = stepper.currentPosition() % microStepsPerFullStep;
332  if ((stepsPer < microStepsPerFullStep) && (oddsteps != 0)) {
333  // Need to move until oddsteps is zero
334    stepper.move(microStepsPerFullStep - oddsteps);  // Relative move
335    stepper.runToPosition();                         // Does the move
336  }
337  // Now adjust for new step setting
338  long currentSteps = stepper.currentPosition();     // Read current position
339  currentSteps = currentSteps * stepsPer;            // Multiply by new setting
340  currentSteps = (currentSteps / microStepsPerFullStep);  // And divide by the old
341  stepper.setCurrentPosition(currentSteps);          // And write it back
342  microStepsPerFullStep = stepsPer;                  // Save new setting
343 }
344
345
346  //===================================================
347
348 void drawnokiascreen1() {                // Screen display #1
349  u8g.firstPage();
350  do {
351    u8g.drawHLine(0, 15, 84);            // Draw top horizontal line
352    u8g.drawVLine(50, 0, 47);            // Draw vertical line
353    u8g.drawHLine(0, 35, 84);            // Draw bottom horizontal line
354    u8g.setFont(u8g_font_profont11);     // Set font
355    u8g.drawStr(4, 10, "cur-pos");
356    u8g.setPrintPos(57, 14);
357    u8g.print(sCurrentPosition);         // Display current position
358    u8g.drawStr(4, 29, "step #");
359    u8g.setPrintPos(57, 29);
360    u8g.print(sStepCount);               //  Display current step count of stepper
361    u8g.drawStr(4, 46, "new-pos");
362    u8g.setPrintPos(57, 47);
363    u8g.print(sEnteredTrack);            //  Display new track #
364  }
365  while ( u8g.nextPage() );
366 }
367
368  //====================================================
369
370 void drawnokiascreen2() {                  // Screen display #2
371  u8g.firstPage();
372  do {
373    u8g.drawHLine(0, 15, 84);
374    u8g.drawVLine(50, 15, 47);
375    u8g.drawHLine(0, 35, 84);
376    u8g.setFont(u8g_font_profont11);
377    u8g.drawStr(4, 10, "joystick mode");  // Display "Joystick Mode"
378    u8g.setPrintPos(57, 14);
379    u8g.print(sCurrentPosition);          // No display here in Joystick mode
380    u8g.drawStr(4, 29, "step #");
381    u8g.setPrintPos(57, 29);
382    u8g.print(sStepCount);                // Display step count of stepper
383    u8g.drawStr(4, 46, "stp-spd");
384    u8g.setPrintPos(57, 47);
385    u8g.print(sEnteredTrack);             // Display step speed of stepper
386  }
387  while ( u8g.nextPage() );
388 }
389
390 //====================================================
391
392 // Shortest path to new track
393
394 long calcSteps(int destination, long FullstepsPerRev, long microSteps, boolean alignReversedEnd) {
395  long microStepsPerRev = FullstepsPerRev * microSteps;
396  long stepsFor180 = microStepsPerRev / 2;
397
398  // Read current position and transfor into the range 0 to microStepsPerRev
399  long currentSteps = stepper.currentPosition();
400
401  currentSteps = currentSteps % microStepsPerRev;                       // Reduce below steps /rev
402  if (currentSteps < 0) currentSteps = currentSteps + microStepsPerRev; // Make -ve's +ve
403
404  // Update AccelStepper with the 0 to  microStepsPerRev range position
405  stepper.setCurrentPosition(currentSteps);
406
407  // Now get the steps for the new destination and add 1/2 rev if reversed
408  long newSteps = steps[destination]* microSteps;
409  if (alignReversedEnd) {
410    newSteps += stepsFor180;
411    newSteps = newSteps % microStepsPerRev;                              // No point in doing more than 1 rev!!
412  }
413  // If less than or equal to a half rev we are done
414  if (abs(newSteps - currentSteps) <= stepsFor180) return newSteps;      // EXIT all done
415
416  // If we are here the number of steps is more than stepsFor180 so we need to reverse
417  //direction from the 'norm'
418  if (newSteps < currentSteps) {
419  // Convert CCW to CW
420    return newSteps += microStepsPerRev;                                 //EXIT
421  } else {
422  //  Convert CW to CCW
423    return newSteps -= microStepsPerRev;                                 //EXIT
424  }
425 }
426  //====================================================
427
428 void JoyStick(int Microsteps) {


Summary:

Note:  The full version of this sketch can be downloaded through the MRH-rrworks-collab.io website and requires membership which is not complicated.  Follow this link (click here).   Please note that this sketch is copyrighted and not intended for sale or distribution.  Intended only for individual use.


The turntable can be the center of attention and operation for your engine facility.  Manually controlling the bridge with a hand-wheel and gear connection is a quick and easy way to get things in operation but there's a better way and it doesn't cost an arm and a leg.  In fact, the cost is comparable to setting up a hand crank with gear reduction and u-joints.  Maybe the only real disadvantage to manual control is that you have to be able to clearly see the bridge location to get the tracks lined up.  This sketch and associated parts were developed because the turntable is located over 2' from where the operator stands and his vision isn't what it used to be.  This is the perfect application for a stepper motor.  It's accurate and stops are repeatable.  Motion can be programmed to suit your eye.  The motion is really the star here because it's realistically smooth and slow and that ramp-up and ramp-down of speed is the cat's meow.  Another advantage to remote Arduino operation is that you can quickly punch in your command and then just observe as the turntable goes through it's operation just like there were two 1.5" tall guys in dirty blue overalls leaning into those push-bars.

This sketch was designed for easy operation.  Most of it is intuitive and the explanation of code throughout makes for easy-to-understand commands. It doesn't take long before you're going through the sketch and modifying things for your own application.  And then once you have all of your track locations added in it's just a matter of deciding where you want to go, entering a number and enjoying the show.
